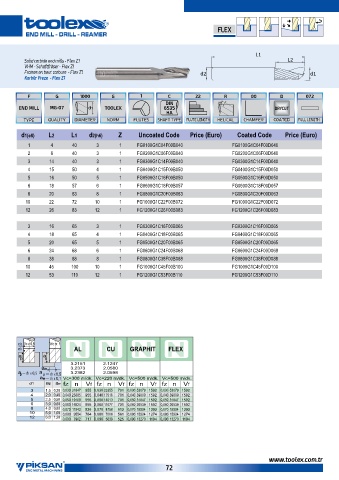

Page 81 - A9vbtxtc_9jk3vl_5b4.tmp.pdf

L1
L2

d2 d1

°
25
d
1

d1(e8) L2 L1 d2(h6) Z Uncoated Code Price (Euro) Coated Code Price (Euro)
1 4 40 3 1 FG0100G1C04F00B040 FG0100G1C04F00D040
2 6 40 3 1 FG0200G1C06F00B040 FG0200G1C06F00D040
3 14 40 3 1 FG0300G1C14F00B040 FG0300G1C14F00D040
4 15 50 4 1 FG0400G1C15F00B050 FG0400G1C15F00D050
5 16 50 5 1 FG0500G1C16F00B050 FG0500G1C16F00D050
6 18 57 6 1 FG0600G1C18F00B057 FG0600G1C18F00D057
8 20 63 8 1 FG0800G1C20F00B063 FG0800G1C20F00D063
10 22 72 10 1 FG1000G1C22F00B072 FG1000G1C22F00D072
12 26 83 12 1 FG1200G1C26F00B083 FG1200G1C26F00D083

3 16 65 3 1 FG0300G1C16F00B065 FG0300G1C16F00D065
4 18 65 4 1 FG0400G1C18F00B065 FG0400G1C18F00D065
5 20 65 5 1 FG0500G1C20F00B065 FG0500G1C20F00D065
6 24 68 6 1 FG0600G1C24F00B068 FG0600G1C24F00D068
8 38 88 8 1 FG0800G1C38F00B088 FG0800G1C38F00D088
10 45 100 10 1 FG1000G1C45F00B100 FG1000G1C45F00D100
12 53 110 12 1 FG1200G1C53F00B110 FG1200G1C53F00D110

N
d2 Vc x 0,8 Vc x 1
AL
CU
FLEX
d1 N N GRAPHIT N
a a
p p
3.2151 2.1247
a e 3.2373 2.0580
a p a p 0,5 3.2382 2.0598
a e 0,1 Vc=300 m/dk. Vc=220 m/dk. Vc=500 m/dk. Vc=500 m/dk.
d1 ap ae fz n Vf fz n Vf fz n Vf fz n Vf
3 1,5 0,30 0,030 31847 955 0,030 23355 701 0,030 53079 1592 0,030 53079 1592
4 2,0 0,40 0,040 23885 955 0,040 17516 701 0,040 39809 1592 0,040 39809 1592
5 2,5 0,50 0,050 19108 955 0,050 14013 701 0,050 31847 1592 0,050 31847 1592
6 3,0 0,60 0,060 15924 955 0,060 11677 701 0,060 26539 1592 0,060 26539 1592
8 4,0 0,80 0,070 11943 836 0,070 8758 613 0,070 19904 1393 0,070 19904 1393
10 5,0 1,00 0,080 9554 764 0,080 7006 561 0,080 15924 1274 0,080 15924 1274
12 6,0 1,20 0,090 7962 717 0,090 5839 525 0,090 13270 1194 0,090 13270 1194
