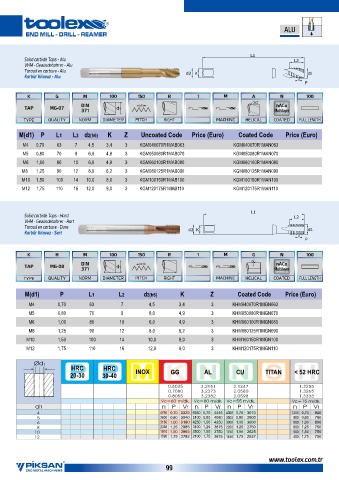

L1
L2

d2 K d 1
P

d P
1

M(d1) P L1 L2 d2(h6) K Z Uncoated Code Price (Euro) Coated Code Price (Euro)
M4 0,70 63 7 4,5 3,4 3 KGM040070R1MAB063 KGM040070R1MAN063
M5 0,80 70 9 6,0 4,9 3 KGM050080R1MAB070 KGM050080R1MAN070
M6 1,00 80 10 6,0 4,9 3 KGM060100R1MAB080 KGM060100R1MAN080
M8 1,25 90 12 8,0 6,2 3 KGM080125R1MAB090 KGM080125R1MAN090
M10 1,50 100 14 10,0 8,0 3 KGM100150R1MAB100 KGM100150R1MAN100
M12 1,75 110 16 12,0 9,0 3 KGM120175R1MAB110 KGM120175R1MAN110

L1
L2

d2 K d1
P

0 °
d P
1

M(d1) P L1 L2 d2(h6) K Z Coated Code Price (Euro)
M4 0,70 63 7 4,5 3,4 3 KHM040070R1MGN063
M5 0,80 70 9 6,0 4,9 3 KHM050080R1MGN070
M6 1,00 80 10 6,0 4,9 3 KHM060100R1MGN080
M8 1,25 90 12 8,0 6,2 3 KHM080125R1MGN090
M10 1,50 100 14 10,0 8,0 3 KHM100150R1MGN100
M12 1,75 110 16 12,0 9,0 3 KHM120175R1MGN110

Ø d 1
P P M K N N S H
HRC
HRC
AL
GG
< 52 HRC
TITAN
CU
INOX
20-30
30-40
0.6035 3.2151 2.1247 1.3255
0.7080 3.2373 2.0580 1.3265
0.8055 3.2382 2.0598 1.3333
Vc=60 m/dk. Vc=80 m/dk. Vc=55 m/dk. Vc=15 m/dk.
d1 n P Vf n P Vf n P Vf n P Vf
4 4750 0,70 3325 6350 0,70 4445 4300 0,70 3010 1200 0,70 840
5 3800 0,80 3040 5100 0,80 4080 3500 0,80 2800 950 0,80 760
6 3180 1,00 3180 4250 1,00 4250 3000 1,00 3000 800 1,00 800
8 2388 1,25 2985 3100 1,25 3875 2200 1,25 2750 600 1,25 750
10 1910 1,50 2865 2500 1,50 3750 1750 1,50 2625 500 1,50 750
12 1590 1,75 2782 2100 1,75 3675 1450 1,75 2537 400 1,75 700
